What’s Happening in Walker Creek?

A diagram of the salmonid life cycle. Beginning with spawning, an arrow points to Death/Decay, and another arrow points to the result of spawning, eggs. From eggs, salmonids become alevin and then fry. Then they mature into smolts, and then adults. Thereafter, they spawn, restarting the cycle.

The salmonid life cycle is key to understanding the importance of Walker Creek in the survival of endangered salmonid populations. Source

The Situation

Walker Creek watershed is important for many reasons, one of which is because it supports federally-protected coho salmon (Oncorhynchus kisutch) within the Central CA Coast Evolutionarily Significant Unit (ESU), meaning they’re genetically distinct. Coho salmon were first listed under the 1973 Endangered Species Act (ESA) as threatened in 1996 and reclassified as endangered in 2005. They live for a total of three (3) years and spend the first half of their lives in freshwater habitat. Their habitat needs are specific and include a rich, complex stream system with native canopy cover, ample fallen and live wood instream, clean spawning gravels, cool deep pools, oxygen-rich water. They also rely on a steady supply of food which is mostly comprised of benthic macroinvertebrates (BMIs) or aquatic insects that thrive in watersheds with good water quality. Walker Creek is in the spotlight with aspirations to continue improving watershed conditions. This has resulted in all of the resource agencies and partners coming together in hopes to support the return of healthy coho salmon populations once again.

Though the historic population was abundant, today there are few coho salmon remaining. Walker Creek coho numbers, however, have increased in recent years, largely due to restoration efforts which ranchers have undertaken in the last three decades. Over 50% of ranches in the Walker Creek watershed have participated in conservation projects during this time. Walker Creek land managers, your ongoing stewardship is making a difference!

We would like to better understand where we should focus our restoration efforts with ranchers. In order to do this, we need to understand where fish survival is declining within the salmon life cycle. Fortunately, there are several agencies and organizations (listed below) who are willing to help us understand the science and habitat needs of this species.

The following projects, in addition to research conducted in Walker Creek, will prove vital in understanding reproductive and recruitment success, survival, and potential limiting factors for Walker Creek coho recovery. Partnerships with landowners and local institutions are critical to the success of all of these efforts in saving a species on the brink of extinction.

As a rancher and land manager, you can continue to help by participating in the projects below.

Dear Walker Creek Rancher, Land Steward, and Manager,

Thank you for your interest and participation in the health of the Walker Creek watershed! Your stewardship is vital to sustaining the ecological health of our soil and water resources. Equally important is your effort to support the biodiverse species who thrive in healthy ecosystems.

Questions?

Contact Marin RCD staff for more information and/or to get involved in Walker Creek Watershed Projects.

A group of land managers, conservation planners, and technical assistance providers stand in a circle discussing Walker Creek projects.

The Projects

View the interactive project map in a new tab here.

Read more about each project by clicking on its title below.

Project 1: Lower Walker Creek Floodplain Habitat Assessment and Design Project

The Lower Walker Creek Floodplain Habitat Assessment and Design Project (funded by CA Department of Fish & Wildlife) includes working with five landowners and collecting information to better understand the relationship between stream channels, floodplains, and existing habitat conditions for salmonids in the estuary-stream ecotone zone upstream of Highway 1. The existing conditions, as well as the site-specific opportunities to enhance or create off-channel habitats and in-stream complexity described in a Habitat Enhancement Plan will all be documented as a result of this project and further used to guide future restoration efforts in the watershed. Restoration design alternatives will be produced for three high-priority sites. The goal of the project is to provide a road map for agencies and organizations to improve rearing habitat and coho juvenile survivorship in the lower Walker Creek floodplain in addition to reducing downstream flooding. Floodplains provide the following benefits:

  • create expanded areas of low flows for smaller fish to retreat to during high flow events, increasing hydraulic complexity
  • provide space for fine sediment to be deposited that would otherwise negatively impact salmonids via turbidity and egg suffocation
  • incorporate a wide array of food sources that are otherwise cut off from the stream channel
  • include vegetation that can provide cover from predators
  • reduce flooding by creating a wider area for water to spread out in a safe space

Life stage(s) benefitted: All life stages; juveniles for rearing and foraging habitat, smolts for outmigrating through desirable water quality conditions, adults entering to spawn in need of shelter during high flows in winter rain events.

Point of Contact

Sarah Phillips, Urban Streams Program Manager: sarah@marinrcd.org

Marin Resource Conservation District

80 4th St/P.O. Box 1146, Point Reyes Station CA 94956

Office: (415) 663-1170

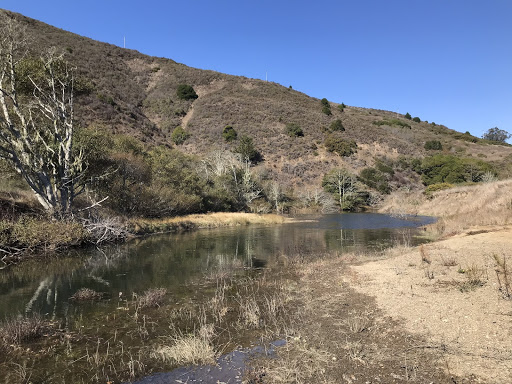

Image is taken from a flat area of the dirt streambank, looking along the stream, which is flat and about 30 feet across. There are some trees and shrubs on the opposite bank, and the grasses on the hill in the background and the floodplain in the foreground are brown.Looking downstream on lower Walker Creek in the floodplain study area.

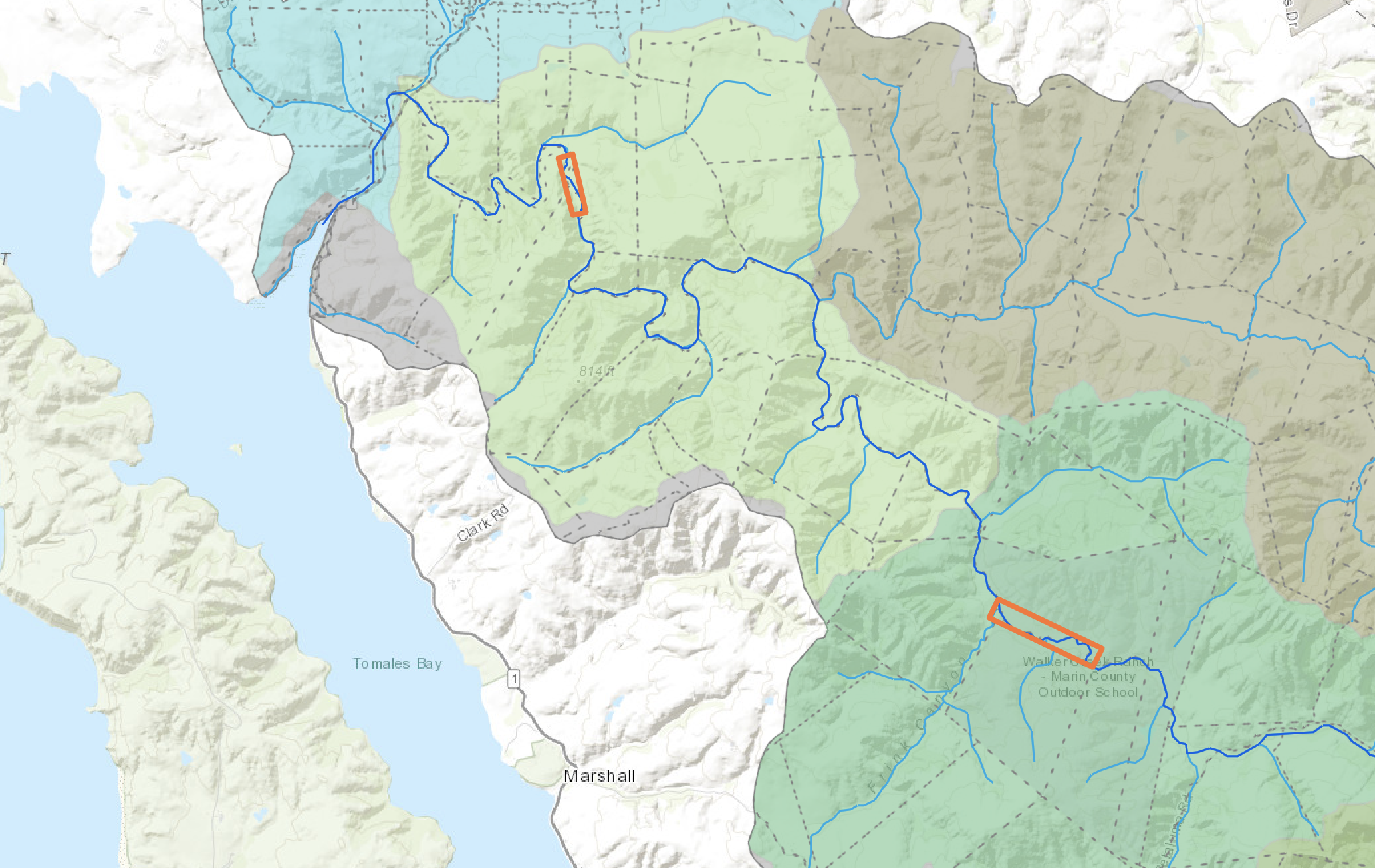

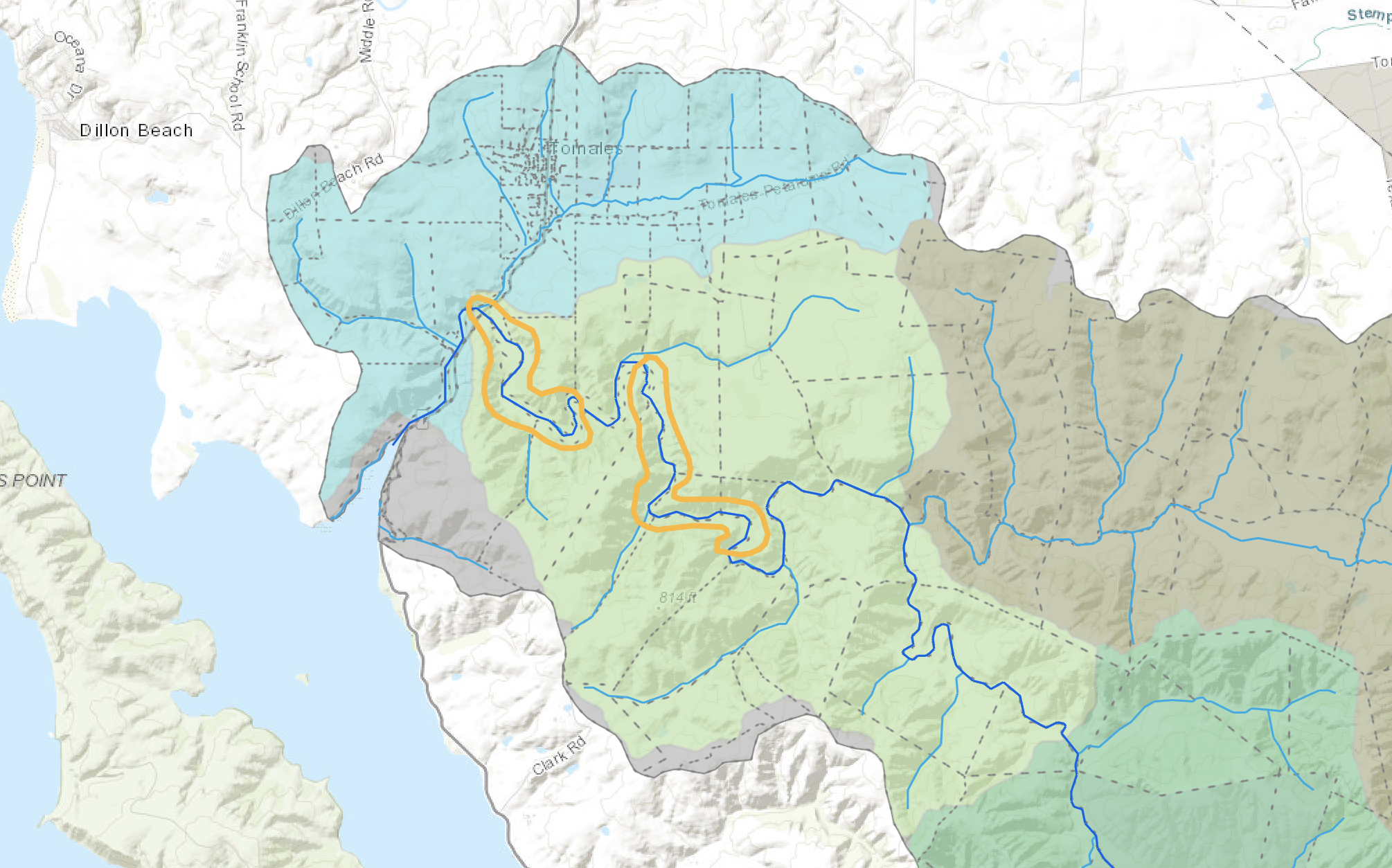

A map of Walker Creek Watershed showing the two areas of the study. Click on the image to see the full map.

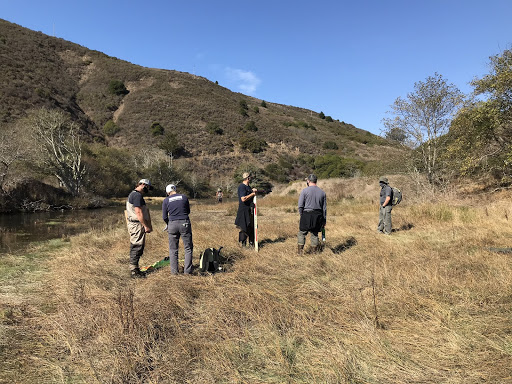

In the same location as the first image, 6 people are gathered, seeming to discuss the landscape. One is dressed in waders and another has a measuring device.

The project team and partners perform a preliminary assessment on mainstem Walker Creek for the study.
Project 2: Smolt Trap

A Smolt Trap is planned to be installed in lower Walker Creek in 2022 with the help of two participating ranches. Monitoring downstream migrating smolts is essential for estimating salmonid freshwater survival. The California Department of Fish and Wildlife (CDFW) will monitor salmonids by capturing, counting and releasing smolts as they leave the watershed every day during the migration period, likely from mid-March to early June. The combination of adult and smolt populations will help evaluate success with salmon releases (described below). Due to the high variability in salmon numbers from year to year and the Coho Salmon life cycle consisting of three relatively independent cohorts, the need for monitoring is likely to continue into the near future. Because female coho salmon are three years of age when they reproduce (spawn), every three years comprises a specific “cohort,” or different assemblage of fish that are living within that same three year life cycle together. On small streams the preferred method for capturing smolts is a fyke net, which funnels fish into a live box.

Life stage(s) benefitted: smolts

Point of Contact

David Hines, Senior Environmental Scientist | Coho Salmon Recovery Coordinator: david.Hines@Wildlife.ca.gov

California Department of Fish & Wildlife | Bay Delta Region

2825 Cordelia Road, Suite 100, Fairfield CA 94534

Office: (707) 576-2813 |  Cell: (707) 656-6070

From above, a stream is shown with a fyke net trap installed. The stream is about 10 feet across. The trap works by funneling fish into a box with an open top. Two people in waders stand on either side of the box with nets, buckets, and other equipment, checking the fish.CA Sea Grant biologists checking a fyke net smolt trap in the Russian River watershed.

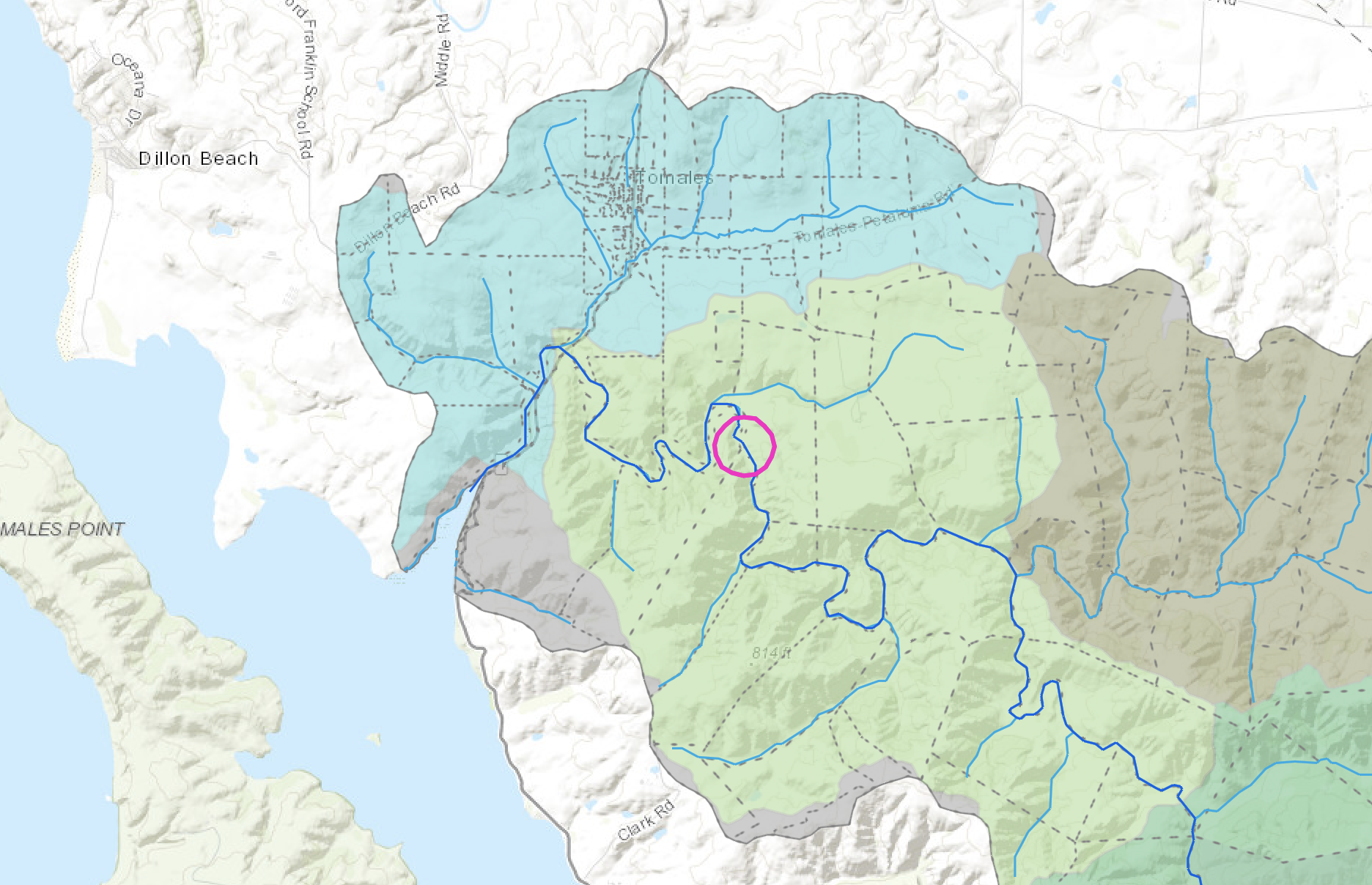

A map of Walker Creek Watershed showing the planned location of the smolt trap. Click on the image to see the full map.



Project 3: Salmonid Releases

Salmonid Releases have occurred at a few ranches into Walker as part of the Coho Broodstock Program at Warm Springs Hatchery at Lake Sonoma. Historically, CA Department of Fish and Wildlife (CDFW) released coho salmon as early as the 1970’s in hopes of reviving the population and learned many lessons along the way (i.e. time of year of releases, age of fish upon release, locations in the watershed for releases, etc…). The genetics of these Walker Creek fish that are reared at the Warm Springs Hatchery are descendants of coho salmon from the Lagunitas Creek watershed. Juvenile coho have been released since 1979 varying in release numbers 15,300-18,363. Furthermore, adult coho have been released since 2003 varying in release numbers from 40-260.  See the data table below for more details on releases since 2003.

Life stage(s) benefitted: adults

Point of Contact

Manfred Kittel, Senior Environmental Scientist | Regional Program Coordinator: manfred.kittel@wildlife.ca.gov

California Department of Fish & Wildlife | Bay Delta Region

2825 Cordelia Road, Suite 100, Fairfield CA 94534

Office: (707) 944-5522

A map of Walker Creek Watershed showing the two release locations. Click on the image to see the full map.

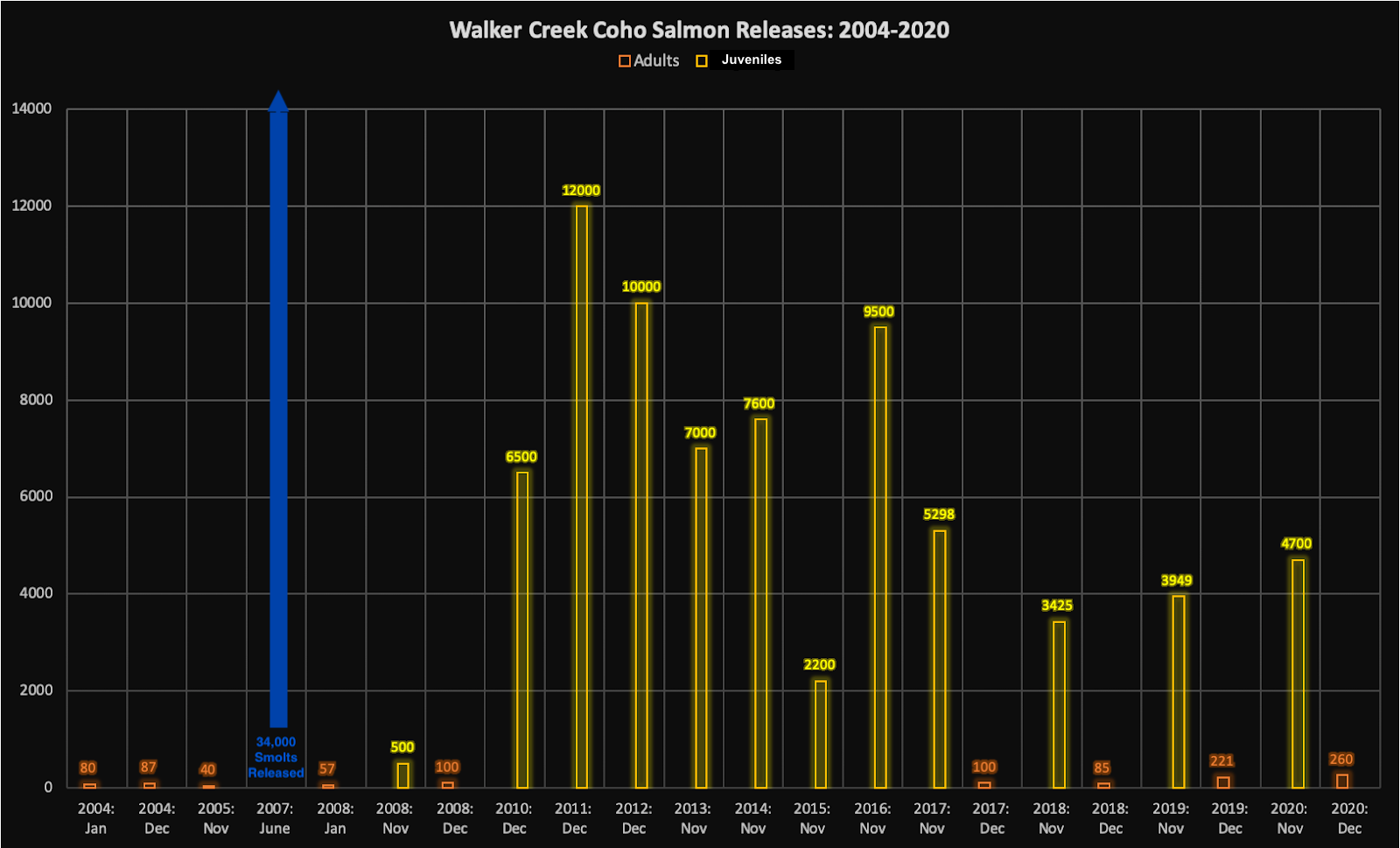

The graph shows data from 2004 to 2020. Most releases happen in the winter season, between November and January. Most of the broodstock released are juveniles (thousands), but some adults are released as well (hundreds). Notably, 34,000 smolts were released in June of 2007.This graph shows the number of releases by date and type, based off of CDFW data. See this PDF for the chart version of this data.

“2017 Coho Release – Walker Creek – Brazil Ranch” video shot by Jim Jensen and created by MALT Stewardship Productions. The video shows the release (below multiple tributaries!) of 100 adult Coho ready to spawn.

Project 4: PIT Arrays

A PIT (Passive Integrated Transponder) Array was installed at Walker Creek Ranch (WCR) at the end of 2020 in a partnership between WCR, CDFW, and CalTrout. The purpose of this pilot study is to identify patterns and timing of hatchery-released coho migration in Walker Creek. On December 15, 2020, two “PIT Antennas”) were placed in Walker Creek on WCR. Hatchery coho salmon from Warm Springs Hatchery were surgically implanted with PIT tags prior to their release, each with their own distinct Tag Number that notifies the antennas of the date and time when the fish swims over them. This data is recorded then downloaded weekly to carry out monthly analyses. Spawning season usually begins with the onset of winter rains and lasts through February. The antennas are installed in mid-December before the fish are released and maintained for the duration through the end of March.

Life stage(s) benefitted: adults

Point of Contact

Pat Samuel, Bay Area Program Manager:  psamuel@caltrout.org

CalTrout

(415) 392-8887 x104

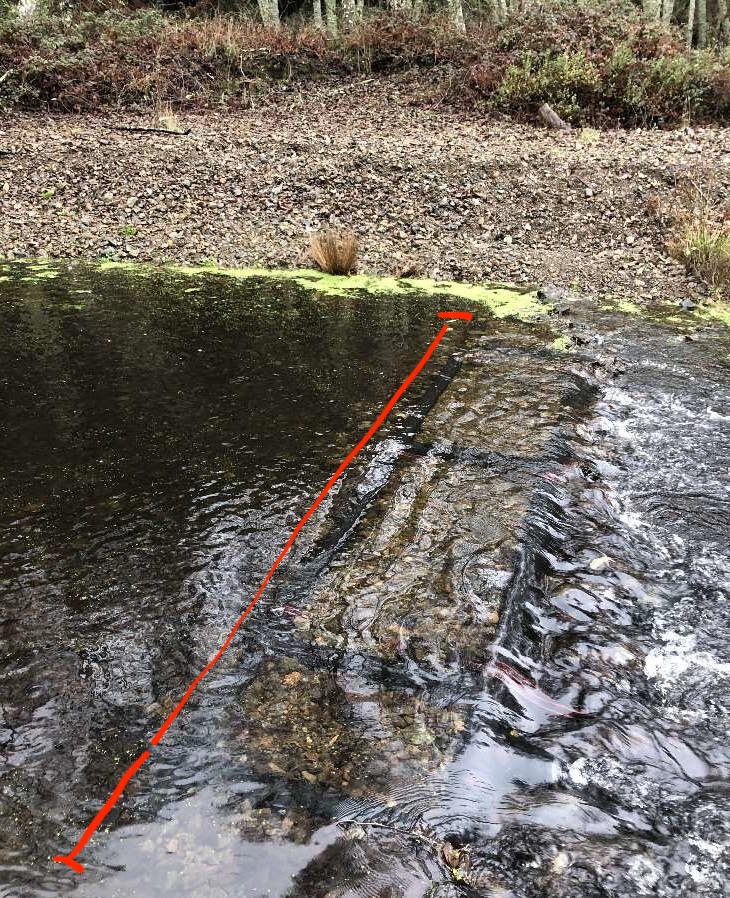

The photo shows a running stream with clear enough water that rocks and the PIT array are visible on the bottom. The image is overlaid with a red line that shows the location of the PIT array, which spans the width of the stream. It looks like a series of black rectangles lying on the bed of the stream.PIT Tag Antenna array (described by the red line) installed in mainstem Walker Creek, on Walker Creek Ranch.



In a heavy-duty orange box on the ground outside, two batteries (the type used in cars) are wired to an electronic device. There is also a Damp Rid moisture absorber container in the box.

This is the PIT Tag System: batteries to operate the array as well as Radio Frequency Identification (RFID) reader and data logging device.

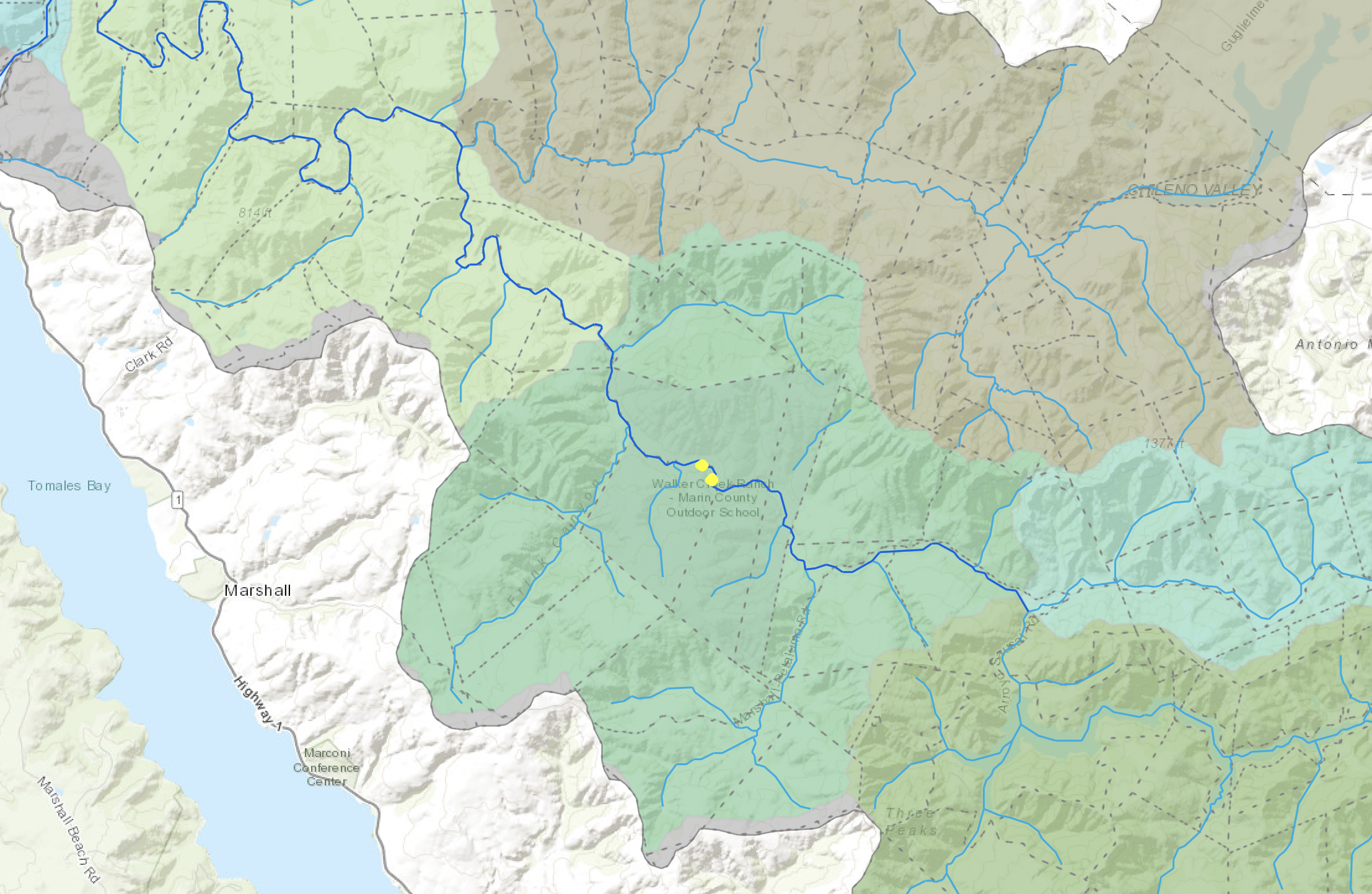

A map of Walker Creek Watershed showing the locations of the PIT Arrays. Click on the image to see the full map.
Project 5: Walker Roads Assessment

A Walker Roads Assessment (funded by CA Department of Fish and Wildlife) was recently completed in the watershed over the last couple years. This project is now coming to a close with 16.2 miles of rural roads having been surveyed and prioritized for road improvement projects. This work is critical as roads tend to erode or fall into disrepair and contribute fine sediment inputs into streams. Poor water quality causes turbidity that can impair visibility, clog fish gills or invertebrate feeding structures, and settle on salmonid eggs that cut off the oxygen supply and suffocate them. The focus area for this work is along the spawning reach where salmon eggs require clean running water to survive.

Life Stage(s) benefitted:  eggs & alevin. Eggs remain in the gravel throughout the winter. In the spring, the eggs hatch and alevins remain in the gravel until their yolk sacs are absorbed. Two to three months after being laid, these fish are large and strong enough to emerge from the gravel, and are then considered fry.

Point of Contact

Nancy Scolari, Executive Director: nancy@marinrcd.org

Marin Resource Conservation District

80 4th St/P.O. Box 1146, Point Reyes Station CA 94956

Office: (415) 663-1170

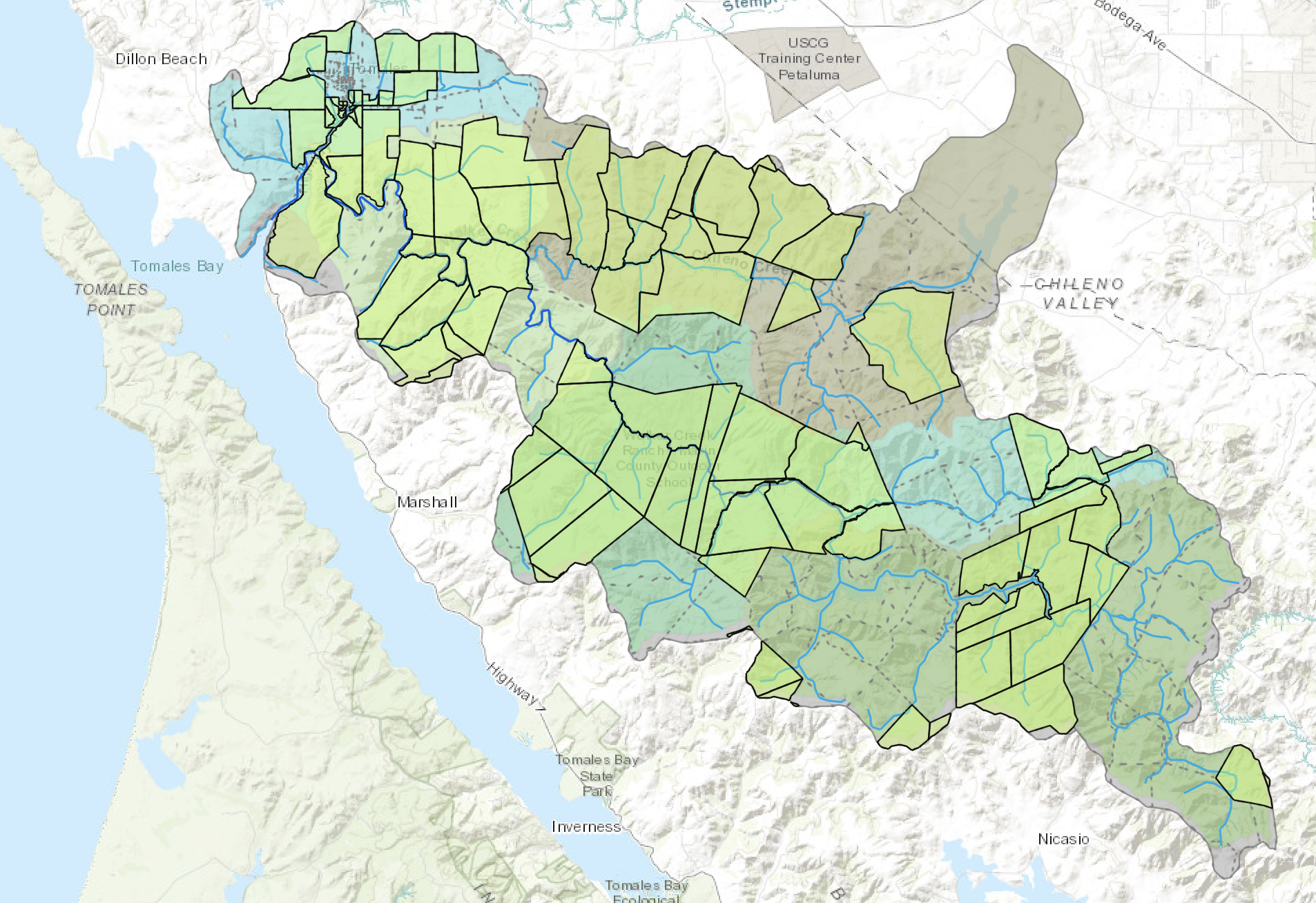

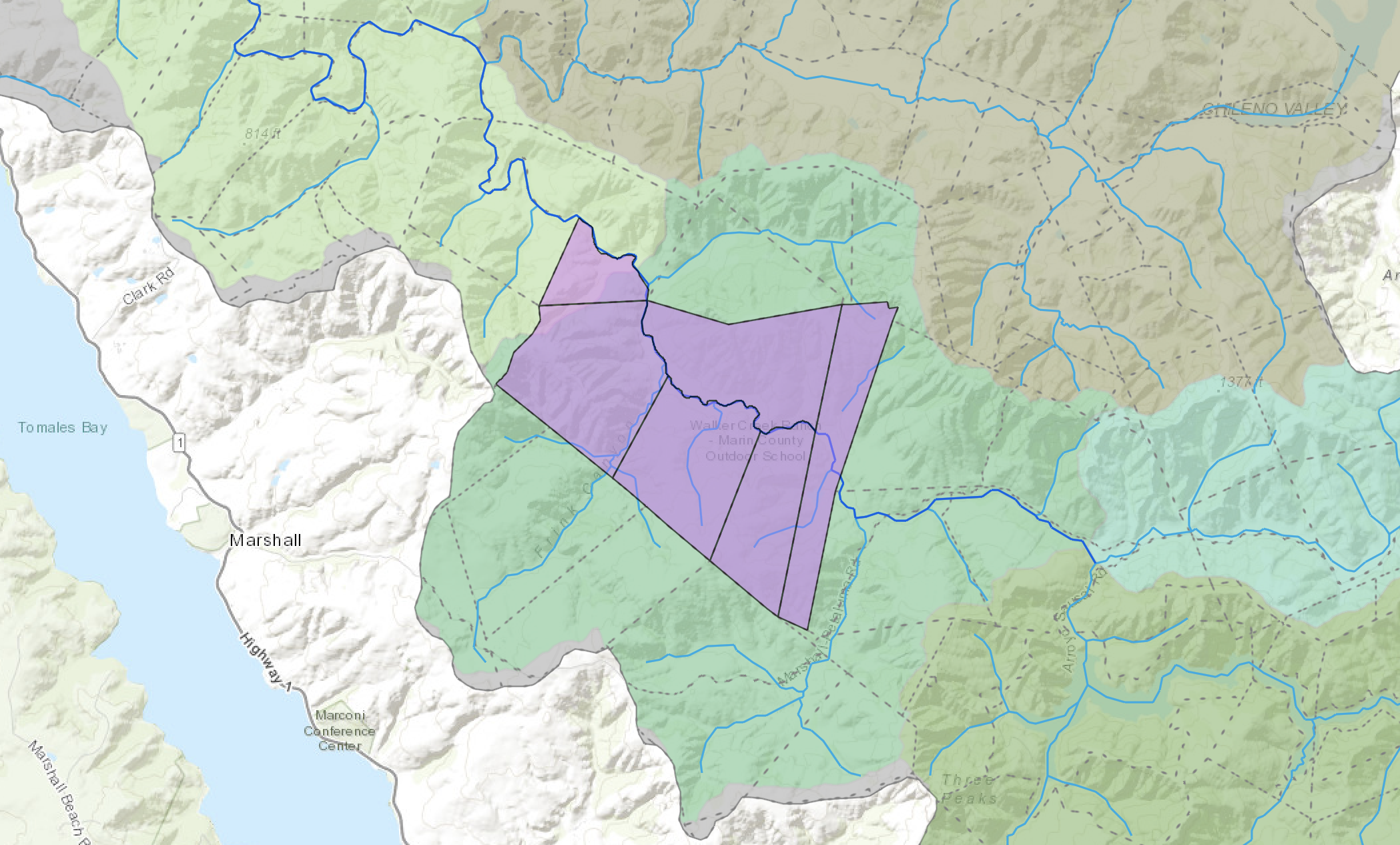

A map of Walker Creek Watershed showing parcels where the roads assessment occurred. Click on the image to see the full map.

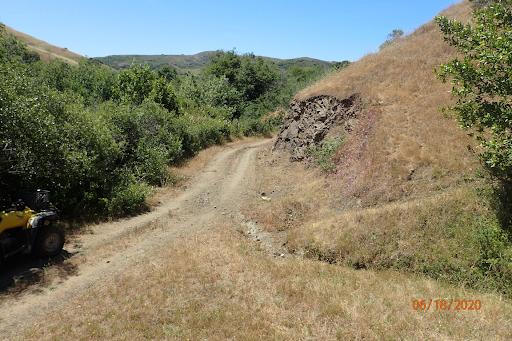

A two-track dirt road crosses the image. To one side is a steep hill that shows signs of erosion, and a small gully runs down into the road. On the other side of the road, trees line the riparian zone of Walker Creek.Pacific Watershed Associates team (vehicle shown left) assess a rural road running parallel to mainstem Walker Creek in an effort to reduce fine sediment runoff entering and impairing the waterway.
Project 6: Spawner and Juvenile Surveys

Marin Water (formerly Marin Municipal Water District or MMWD) has been carrying out intermittent spawner surveys and juvenile surveys. Surveying has been infrequent due to staffing constraints and inhospitable weather conditions at times as well as limitations around private property access. Marin Water has been carrying out spawner surveys since 2003 and juvenile surveys since 2005. To date, monitoring of coho salmon in Walker Creek has been limited to spawner surveys to estimate adult abundance and DNA analysis of juveniles to identify genetic diversity and whether the parents were of hatchery origin (analysis conducted by National Marine Fisheries Service). Documenting wild-origin coho salmon fry determines if the conservation goal of re-establishing a self-sustaining population is being met.

Life Stage(s) benefitted: spawners and juveniles

Point of Contact

Eric Ettlinger, Aquatic Ecologist: eettlinger@marinwater.org

Marin Water

49 Sky Oaks Rd. Fairfax, CA 94930

Office: (415) 945-1193

In a forested area, two people sit on industrial-type buckets on the leafy ground. One, with a black knit cap, sunglasses, and waders on, smiles at the camera, while the other, also wearing waders and sunglasses, reaches into a bucket placed between them. The smiling person is holding a small fish net and a rectangular plastic box on her lap. Also next to them appears to be more equipment, including scissors, a Sharpie, post-it notes, and another bucket.Marin RCD’s Urban Streams Program Manager, Sarah Phillips, supporting Marin Water (MMWD) with juvenile salmonid monitoring efforts in Walker Creek. In this image, they are measuring, weighing, and PIT tagging coho salmon for tracking.

A map of Walker Creek Watershed showing the extent of the survey area. Click on the image to see the full map.



In a white plastic box with a ruler on the bottom is a tiny 10cm long fish. The fish has yellow eyes with black pupils on its head, rounded see-through fins, a white-ish belly and a bluer back with some striping. It has a slender body.
Juvenile coho salmon (Oncorhynchus kisutch)



In a white plastic box with a ruler on the bottom is a 9-inch long fish. It looks about an inch thick and has a slender, ellipse-type shape. It has brown eyes with black pupils on its head, a small open mouth, a yellow/brown very triangular pectoral fin, more rounded white pelvic and anal fins, and a see-through black-spotted caudral fin with rounded edges.1+ year Steelhead trout (Oncorhynchus mykiss)
Project 7: Land Stewardship Projects: Want to get involved?

The Marin RCD, and partner organizations, have been constructing hundreds of projects with ranchers in this watershed since the late 1980s. Many miles of riparian area have been restored, along with the installation of critical infrastructure to support ranchers with alternative water sources such as tanks, troughs, fencing, road work, and erosion control. These projects prevent sediment and pathogens from entering Walker Creek and Tomales Bay. If you are interested in more information about our programs, please give us a call at (415) 663-1170 or contact us via email using the sidebar to the right of this page.

Life Stages(s) benefitted: all stages

A map of Walker Creek Watershed showing the parcels where Marin RCD and partners have completed conservation projects. Click on the image to see the full map.

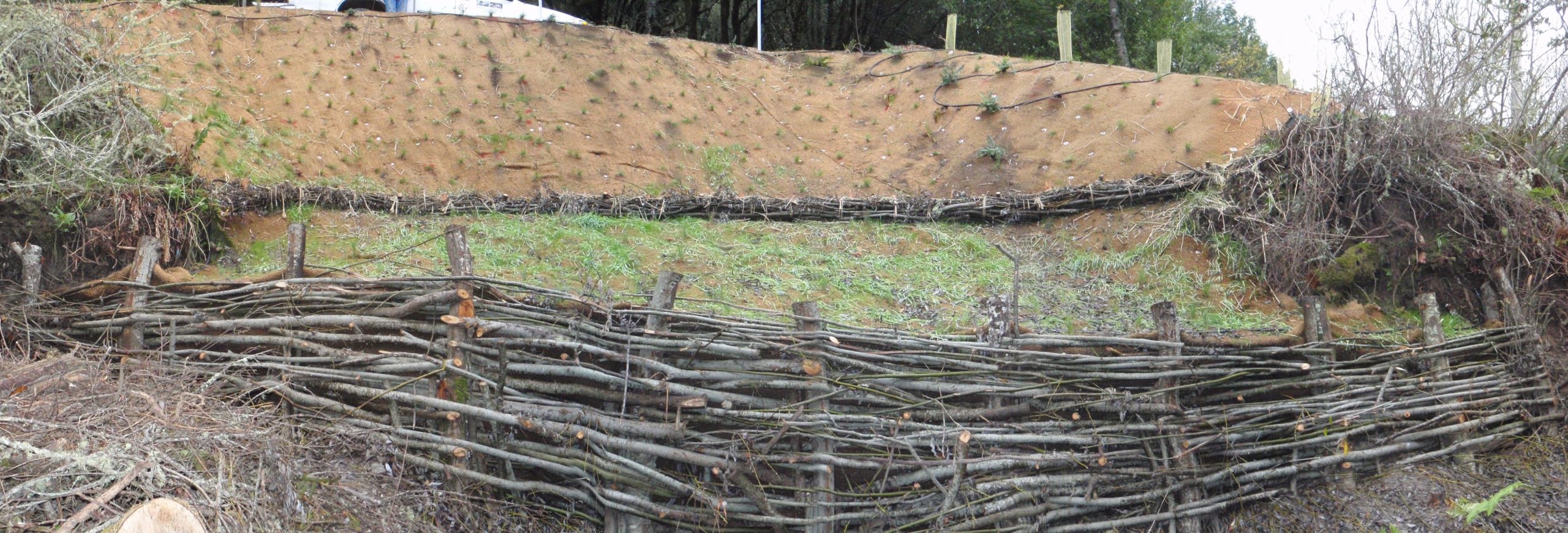

This panoramic image shows a bank which has been stabilized with a willow wall, constructed out of vertical willow stakes woven with horizontal smaller branches and twigs.

A willow revetment constructed by Furlong Construction provides bank stability on a tributary to Soulajule Resevoir.

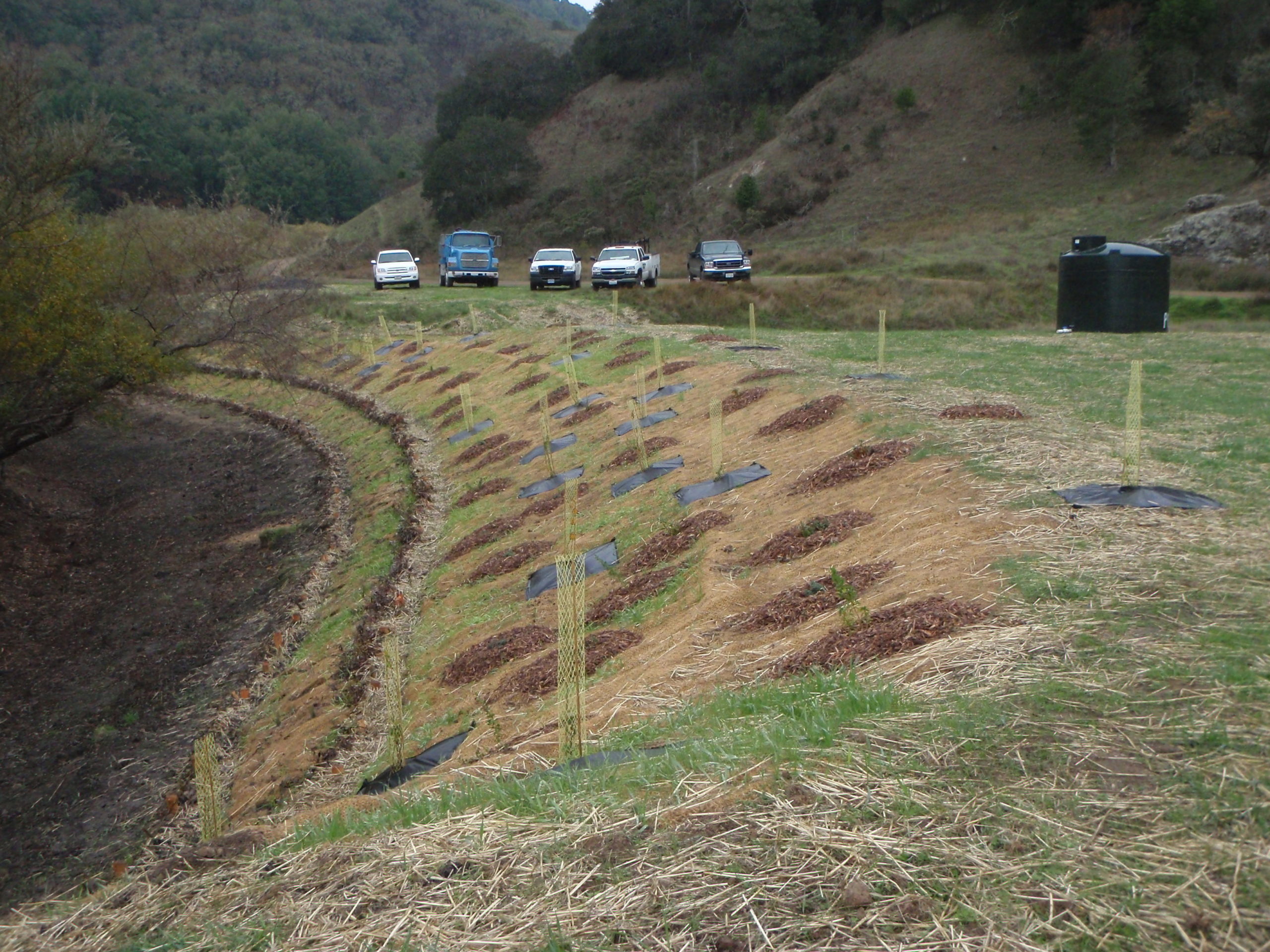

A side angle view of the bank shows an organized planting pattern with small plants installed. In the background are 5 trucks that look related to the planting operation.  Caption: Another view of the willow revetment constructed by Furlong Construction provides bank stability on a tributary to Soulajule Reservoir.

This streambank repair included laying back its vertical banks, planting native trees, and installing live willow fascines at the toe. The willows will grow to provide additional bank stability.

On a cloudy day, two people stand next to a livestock water trough that is around 6 foot by 3 foot wide and a foot and a half tall, constructed out of concrete. The trough has been installed at the top of a small grassy hill, and in the mid-distance a few black grazing cows can be seen. In the background, forested hills and green grassy fields stretch out.

A livestock water trough is installed at this site to distribute cattle on a ranch. A wildlife escape ramp is installed to help provide critters with a means of  escape if necessary.

On a blue-sky day, a large, sparse landscape stretches out, covered in brown grasses in the background. In the foreground, a 10-foot-wide, 50-foot-long gully with sloping sides is carved out. A person in a T-shirt and boots walks along the bottom. There are burlap-type fabric panels laid out overlapping each other along the sides and bottom of the gully, and next to the gully on flat ground by a lone tree rests a mid-sized white excavator.

A gully repair using a Fabric Reinforced Earth Fill (FREF) bioengineering technique. Erosion control fabric is used to wrap soil lifts that are layered with native willow which grow and provide slope stability. The site was then fenced and planted with rushes.

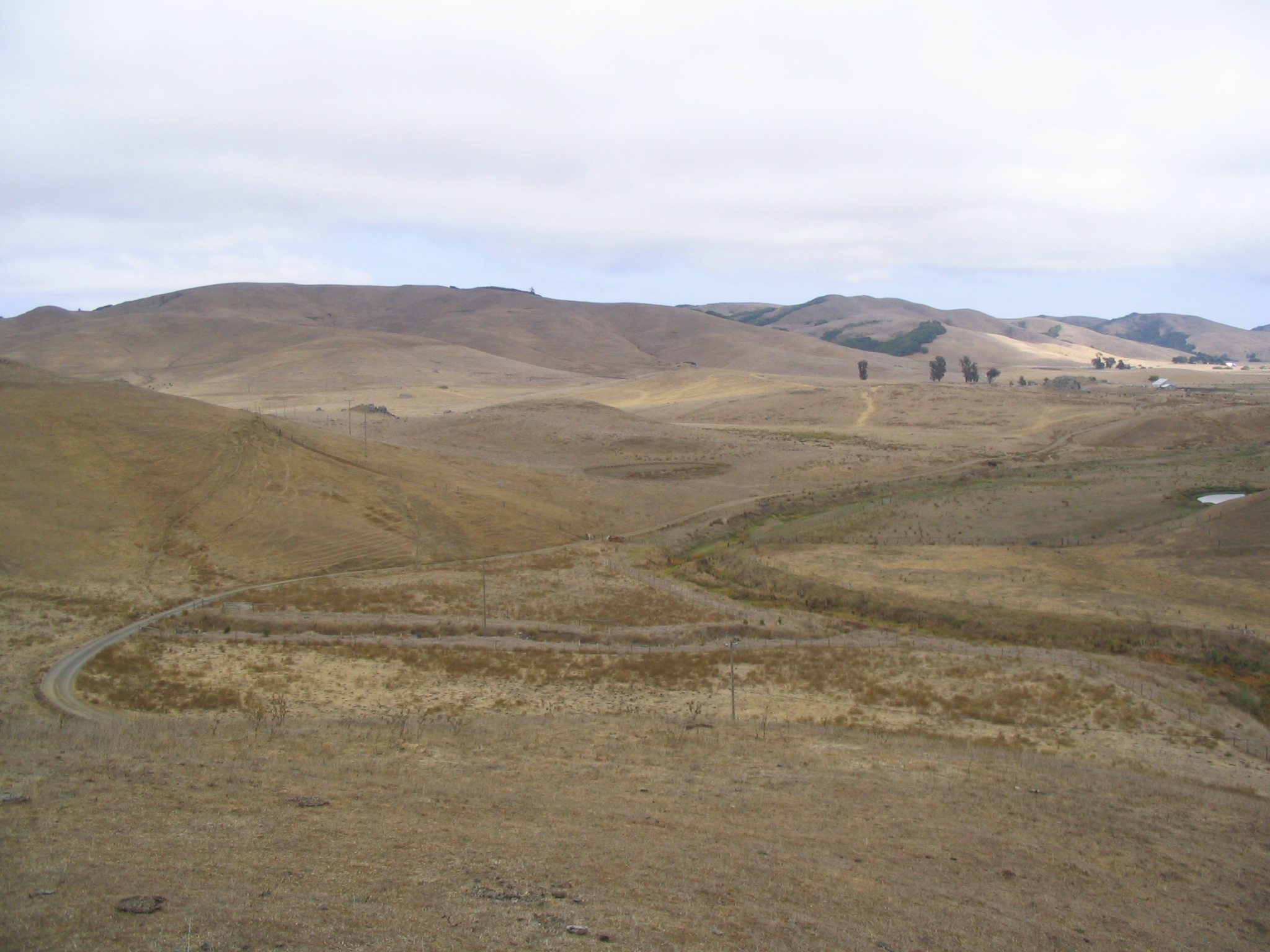

A bright but clouded day in the Marin hills is shown. All the fields and hills are brown (indicating season), with some patches of trees and shrubs. In the foreground, a flat part of the landscape shows a road curving around what seems like a dried-up stream. No large plants grow by the stream.



A photo sequence showing the evolution from 2004 to 2020 of a creek restoration project on a section of Chileno Creek that drains into Walker Creek. The creek was fenced by the Marin RCD and planted with native plants by the Point Blue Conservation Science: Students and Teachers Restoring a Watershed program. This is the site in 2004. (photo credit Point Blue STRAW)

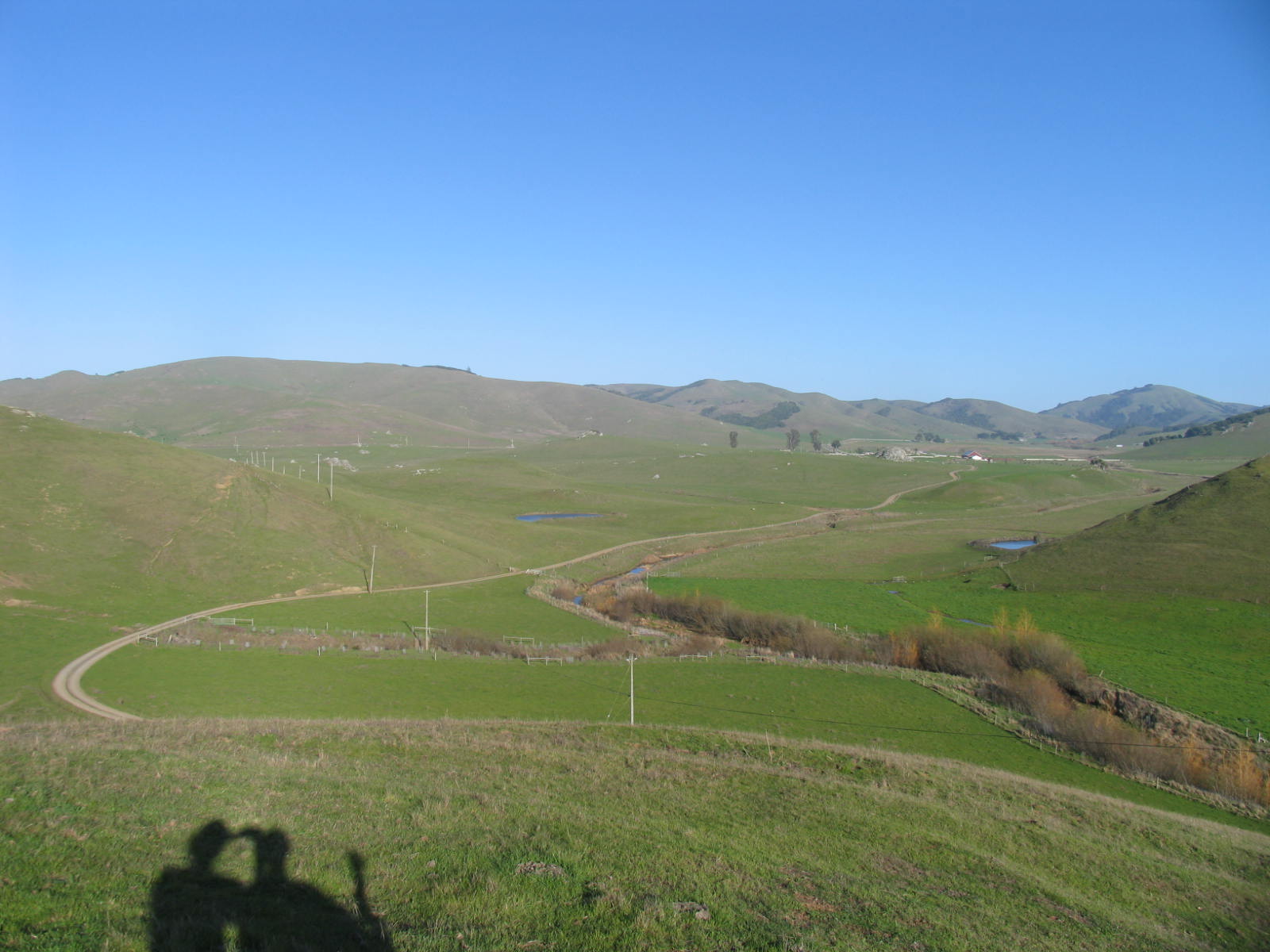

A bright blue-sky day in the Marin hills is shown, from the same location as the previous image. All the fields and hills are green, vibrant with growing grass, and some patches of trees and shrubs remain. Noticeably different is how the creek area in the foreground has been planted, with fences around new trees.

This is the site in 2012.

A bright blue-sky day in the Marin hills is shown, from the same location as the previous two images. All the fields and hills are brown (indicating season), and some patches of trees and shrubs remain. The creek area trees have grown substantially, and look bushy and green.

This is the site in 2020.
